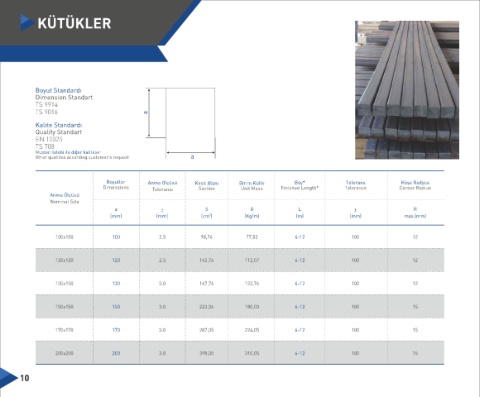

KÜTÜKLER

Boyut Standardý
Dimension Standart
TS 9914
TS 9016 a

Kalite Standardý
Quality Standart
EN 10025
TS 708
Müþteri talebi ile diðer kaliteler
Other qualities according customer’s request a

Boyutlar Anma Ölçüsü Kesit Alaný Birim Kütle Boy* Tolerans Köþe Radyus
Dimensions Toleransý Section Unit Mass Finished Length* Tolerance Corner Radius
Anma Ölçüsü
Nominal Size
a + - S G L + - R
2
(mm) (mm) (cm ) (Kg/m) (m) (mm) max.(mm)

100x100 100 2.5 98,76 77,53 6-12 100 12

120x120 120 2.5 142,76 112,07 6-12 100 12

130x130 130 3.0 167,76 132,76 6-12 100 12

150x150 150 3.0 223,06 180,00 6-12 100 15

170x170 170 3.0 287,05 224,05 6-12 100 15

200x200 200 3.0 398,05 310,05 6-12 100 15
